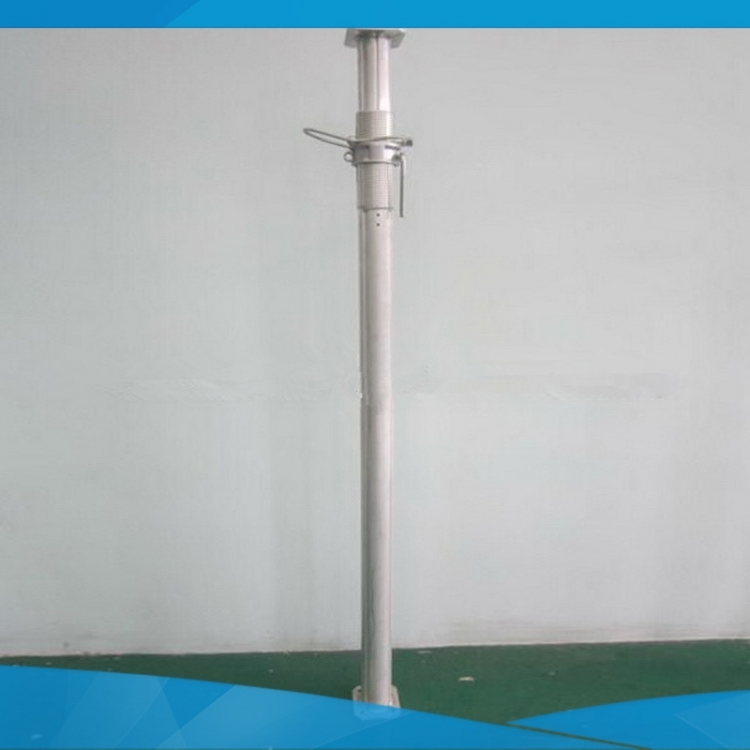

Strong Strength Aluminum Shoring Prop

1. Product Description:

High capacity  aluminum shoring prop is engineered to meet the ever increasing demands in the construction industry for safety, strength, durability and speed, adjustable aluminum shoring prop has almost twice the load capacity of most standard post shores available around the global.

2. Product Parameters:

1) Product Name: Aluminum Props

2) Material:  Aluminum Alloy 6082-T6

3) Size:  Standard Post Diameter Φ100mm

4) Scaffolding Height: Single Max.5M

3. Product Details:

4. Advantages:

1）Safety

-Manufactured with 6082-T6

-Qualified by Aluma 3rd Party Test

-Stringent Quality Inspection system applied

2）Efficiency

-High loading capacity requires less use of props, reducing cost in material and labor

-No loose components

-Quick adjustment with drift pin

3）Durable

-Full aluminum structure ensures no risk of corrosion

-Environmental Friendly

-Full aluminum structure leads to no Galvanization and thus minimizes the pollution to our earth

4）40% Recyclable Value 40%

-The used aluminum material is of greater recyclable value, over 40% higher than steel.

5) Flexibility.

-Various sizes and different loading capacity to suit your changing needs

High Loading Capacity.

-With a capacity of up to 90 KN (20,000lbs) when closed, the Aluminum Heavy & Medium Duty Posts have almost twice the capacity of most standard post shores available on the market. That means you need only half the number of posts to get the same job done.

5）Easy-to-Strip

-The retaining pin can be released with a single hammer blow and allow the prop to lower by 3 mm (1/8”) to release the load. Further stripping can be achieved by turning the nuts or removing the pin completely. The integrated pin retainer means that it can never be lost or misplaced.

5. Product Assembly Description:

Check that all components are on site, undamaged and that they are functioning correctly – (refer to Checklist and Quantity Schedules). Damaged or incorrect components shall not be used.
